Logisim on ReactOS

ReactOS version 0.4.16-x86-dev

Build 20241110-0.4.16-dev-254-g30b4024.GNU_8.4.0

Logisim is circuit simulation program (for logic circuits) which requires JAVA.

It is avaiable here:

https://sourceforge.net/projects/circuit/

I tested this with JAVA versions 5 and 6. I see that according to JIRA other users are writing that Java 7 and 8 do not work on ReactOS (of course I did not open every entry, because the search engine returns over 1000 for the query 'java'), so I chose 5 and 6 which at one time worken on WinXP, so should on ReactOS NT 5.2

I not uploaded JAVA setups because size 16MB, but I can do it later if someone requests it.

Instalation JAVA 6passed without problems:



but when starting Logisim, it gives errors:

and leaves the following records:



Appcrash_2024-12-17_14-00-53.txt

Appcrash_2024-12-17_14-01-03.txt

Appcrash_2024-12-17_14-01-10.txt

Appcrash_2024-12-17_14-01-27.txt

Appcrash_2024-12-17_14-04-46.txt





there are logs from port COM1:

java_log_debug.txt



Then, I try with JAVA 5, it says error:

log from desktop:

Appcrash_2024-12-17_14-25-40.txt



log from port COM1:

java5_log.txt



If anyone sucessto run Logisim on ReactOS, let's try how fast the simulation of calculator will run:

Calculator-1.7z

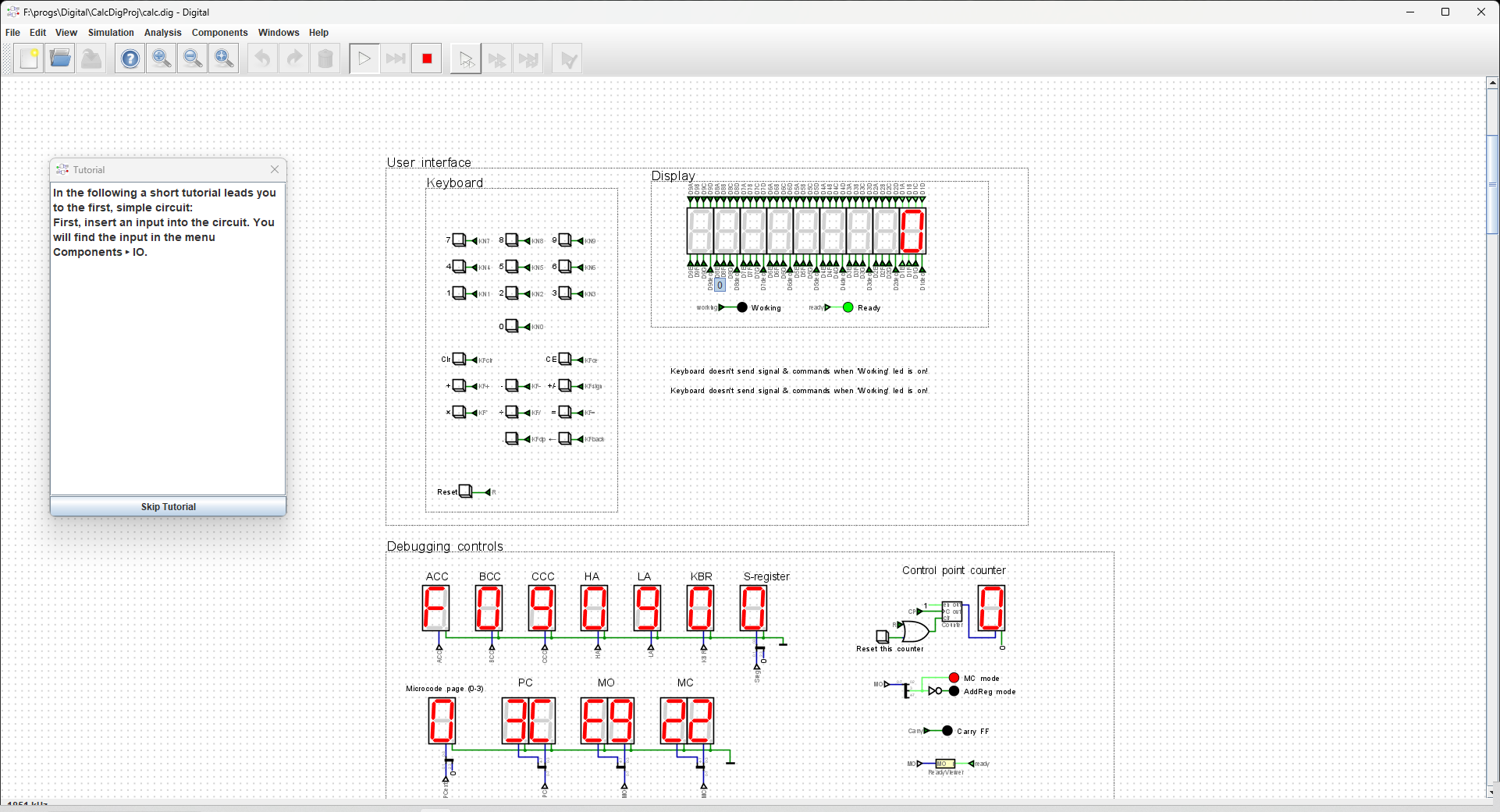

which ran relatively quickly on Windows 10 (divide operation with floating point, reduced to successive subtraction, took less than a minute):

 I uploaded my .circ example files, that I've been making for the last 15 years: other examples.7z
