Incorrect rendering with ATI Radeon HD 4250

    XMLWordPrintable

Details

    • Bug
    • Resolution: Unresolved
    • Major
    • None
    • Drivers: Other

    Description

      I'm testing ReactOS-0.4.10-iso and i've installed the AMD Catalyst drivers 11.8 located here:

      https://files.atherosdrivers.com/amd/11-8_xp32_dd_ccc_ocl.exe

      I installed only the video drivers by extracting the contents with 7zip and installing the driver under device manager. My video chipset is the ATI Radeon HD 4250.

      This driver also needs Microsoft Visual C++ 2005 SP1 runtime this should be installed before the driver or it will display a error dialog on startup.

      https://www.microsoft.com/en-us/download/details.aspx?id=5638

      This driver has a few problems with ReactOS Icon's fail to display primarily when in 32bit color modes.

      Some things don't display like graphics on the start button and the color palette under color depth setting.

      The graphics on toolbar buttons don't display.

      I've included a debug log in case it helps.

      Attachments

        1. image-2018-11-08-23-27-06-214.png
          10 kB
        2. image-2018-11-08-17-09-42-224.png
          11 kB
        3. image-2018-11-08-17-06-27-609.png
          20 kB
        4. debug.log
          125 kB
        5. boot failure.png
          boot failure.png
          646 kB

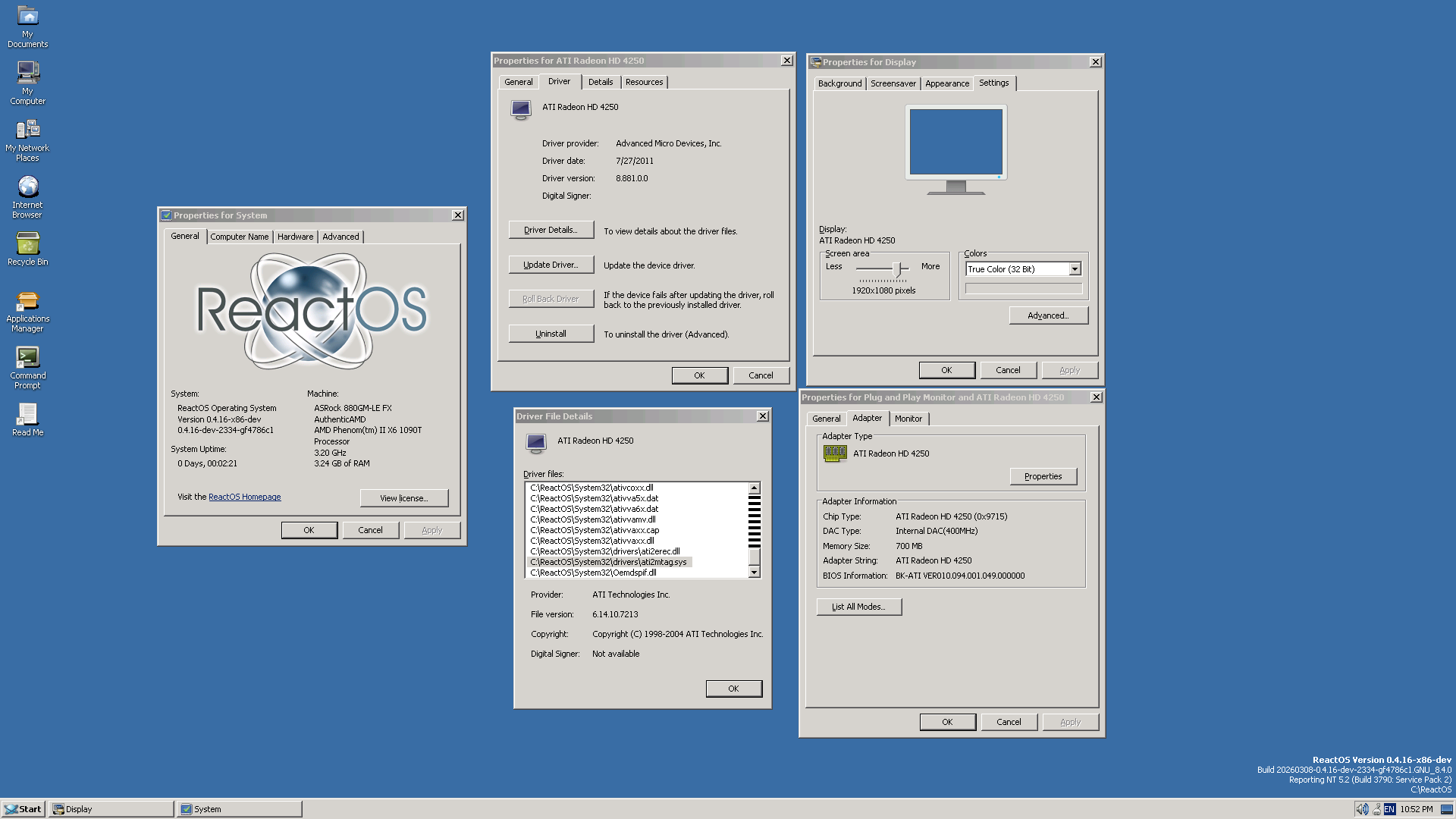

        6. ATI RADEON HD 4250.png
          ATI RADEON HD 4250.png
          42 kB

        Issue Links

          is blocked by

          Bug - A problem which impairs or prevents the functions of the product. CORE-17920 ReactOS fails to boot to desktop after ATI Radeon HD driver is installed

          • Major - Major loss of function.
          • Untriaged
          relates to

          Bug - A problem which impairs or prevents the functions of the product. CORE-8325 Various fails of "ATI Catalyst 10.2 Legacy" driver installation

          • Trivial - Cosmetic problem like misspelt words or misaligned text.
          • Resolved

          Bug - A problem which impairs or prevents the functions of the product. CORE-14927 Incorrect rendering with AMD Radeon drivers

          • Major - Major loss of function.
          • Untriaged

          Epic - Created by Jira Software - do not edit or delete. Issue type for a big user story that needs to be broken down. CORE-19026 [DRIVERS] Epic meta graphic cards bugs

          • Major - Major loss of function.
          • Untriaged
